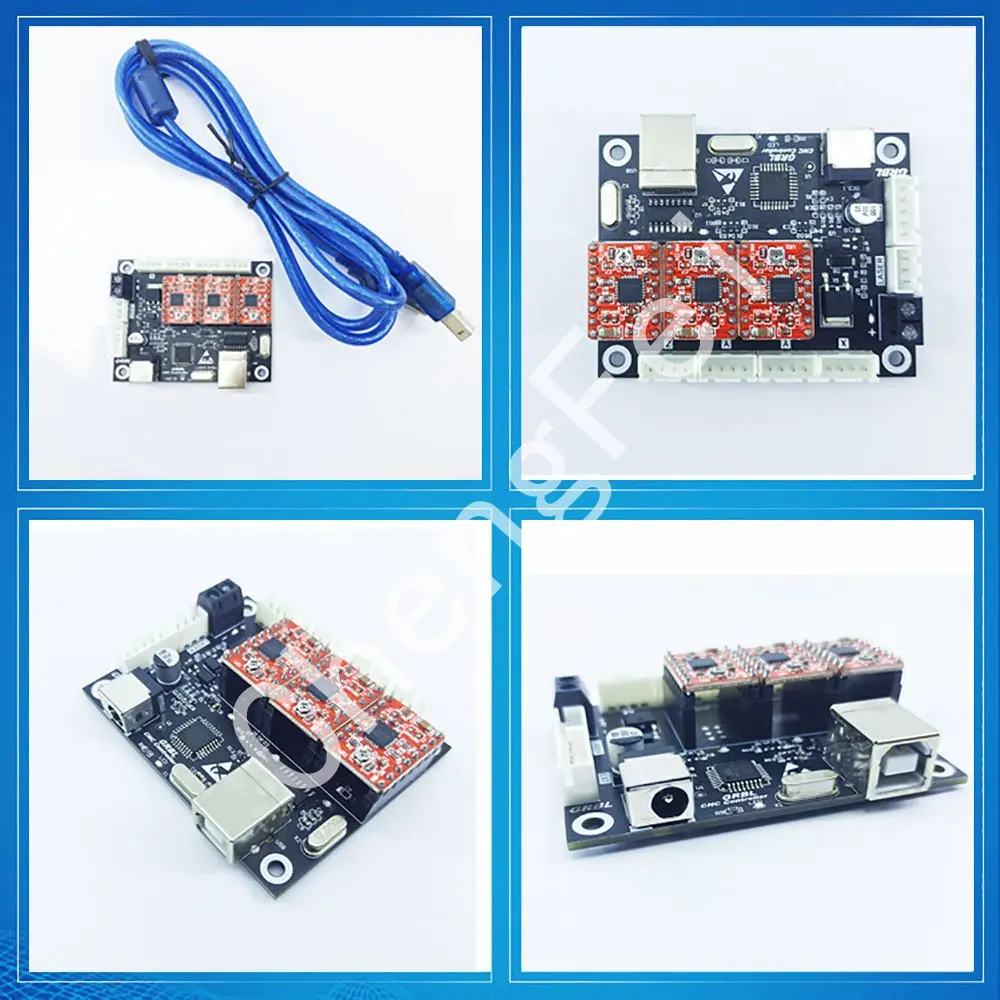

parameter:

Input voltage: 9V-24V/8A
Output of each axis: 4988 modules ≤ 1.5A 8825 modules ≤ 2A
Spindle output: ≤6A (9V-24V) Laser output: PWM
Output power: support adjustment connection method: USB
Power interface: DC5.5-2.1
Support software: Mini-carving wizard, Mini-carving housekeeper, Mini-carving master Candle, grblControl, etc.
Support offline: Need to connect the supporting LCD screen for reading SD/TF card.
Applicable equipment: laser engraving machine, three-axis engraving machine.
Applicable people: beginners’ entry level.

Technical Q&A:

1Q: Can the motherboard be connected to a stepper motor?
Answer: There is a motherboard, motherboard + drive module kit, choose the motherboard + drive module to connect to the motor.

2Q: Can it drive 57 stepper motor?
Answer: Regardless of 42 or 57 motors, as long as the power is within the power range of the module.

3Q: Can a 57/3A motor be connected?
Answer: No, the drive power of the module is exceeded. The 4988 module is within 1.5A, and the 8825 module is within 2A.

4Q: What power spindle motor does it support?
Answer: The mainboard spindle port is suitable for 555 small host motor, the spindle current is not more than 3A, and the power greater than this needs to be connected to a relay to control.

6Q: What software does the motherboard use?
Answer: Support all software of GRBL system.

7Q: How much laser power does it support?
Answer: There is no limit, the output is a PWM signal.

8 Q: What is the breakdown?
Answer: You can set it yourself, and the default is 16 subdivisions.
