Description
- Origin: CN(Origin)
- Model Number: OX-45016
Technical Parameters:
Laser wavelength: 445nm-450nm blue laser
Spot type: retangle spot , FOCUSABLE
Size: 33*72mm(including fan and driverboard)
Drive mode: external ACC constant current drive
Cooling method: forced air cooling
Operating voltage: 12V DC
Control interface: 2 * 2.54 ( TTL/PWM 0-5V control power)
Shell material: aluminum, surface anodized
Collimator lens: optical glass coating

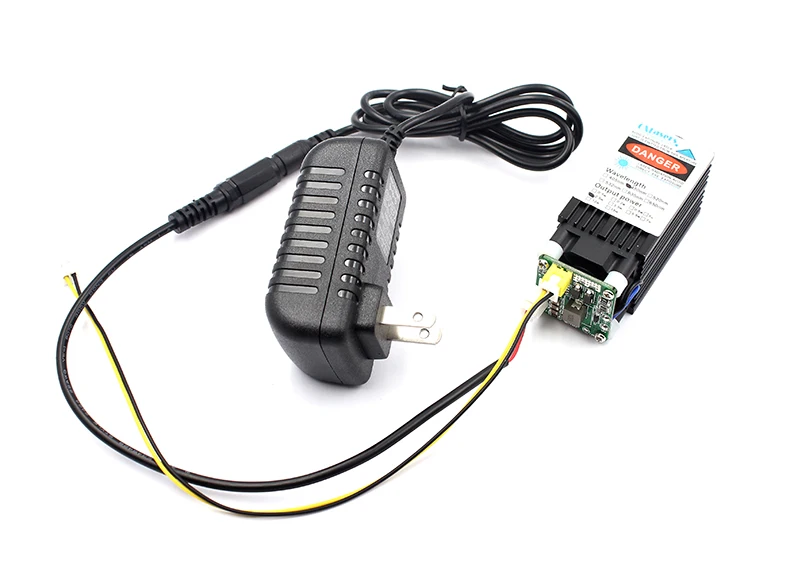

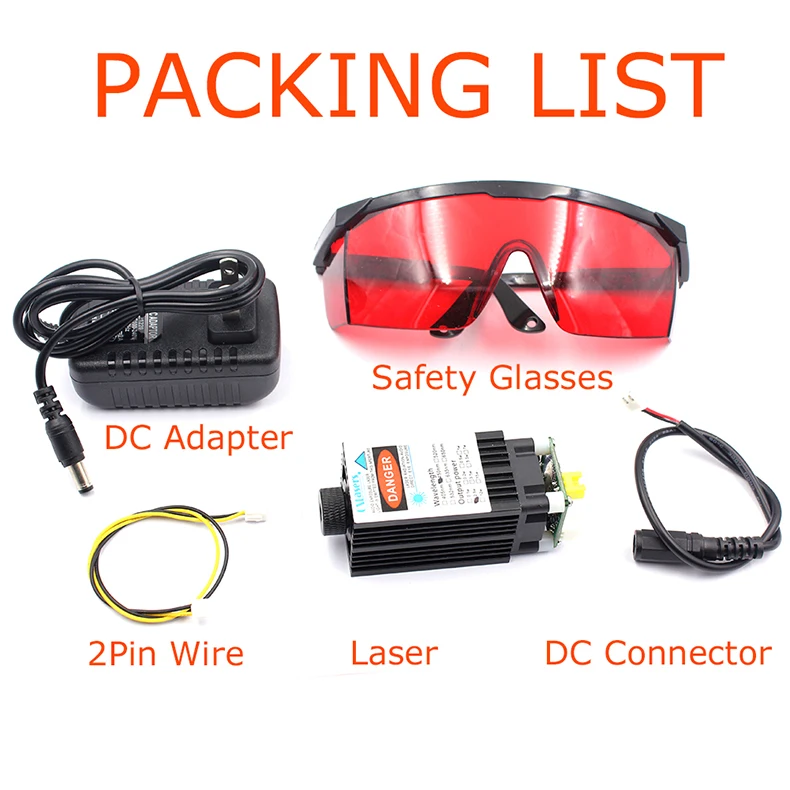

PACKING LIST:
LASER*1
2pin-2pin wires*2
DC-2Pin Connector*1
12V 2A AC/DC ADAPTER*1
SAFETY GLASSES*1
BUYER MUST READING:
PWM: 0-5V, FREQUENCE: <19Khz

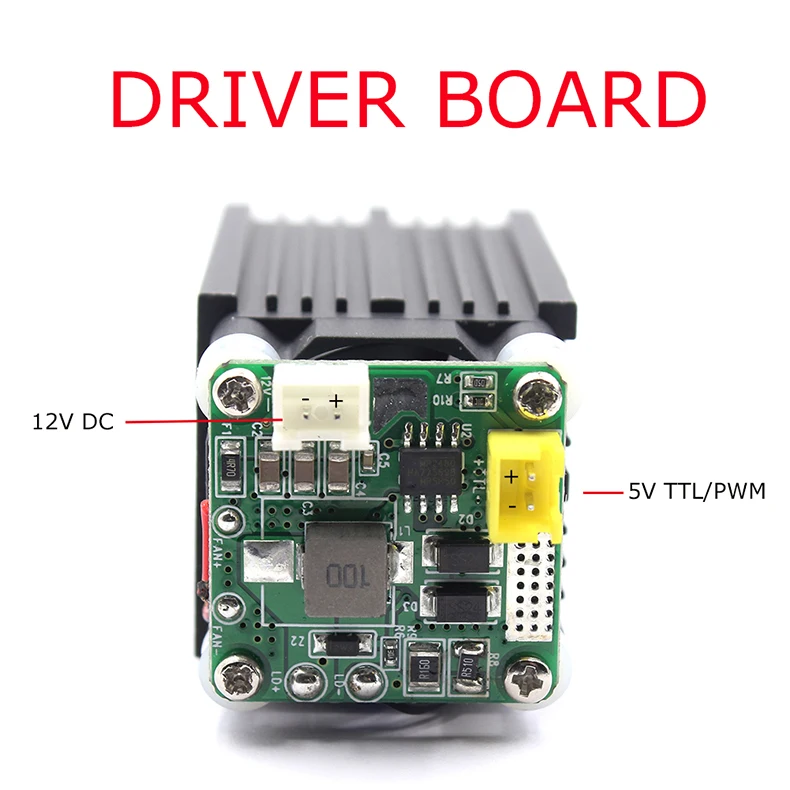

When you connect laser to your controller board, please pay attention to the pin positions of 12v+ GND- and PWM+ –
Please add a fan when you engraving or cutting, in case smoke blur the lens damage the lens
