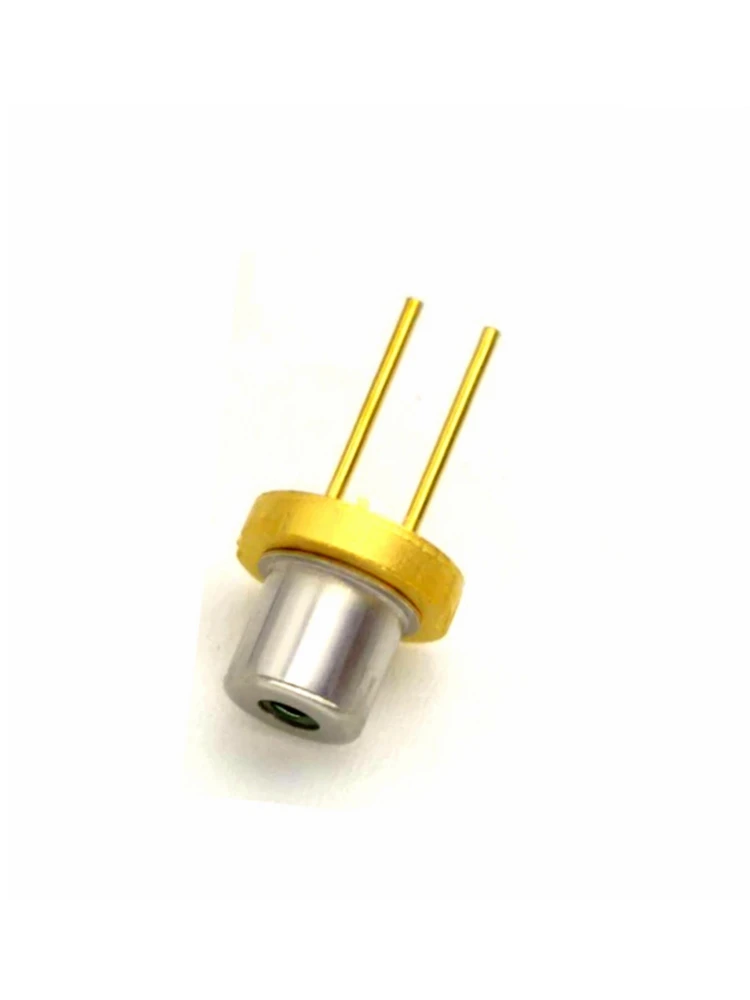

GH0631IA2GC 635nm 638nm 180mW 185mW Red Laser Diode Orange Red Light Single Mode

  • Home
  • GH0631IA2GC 635nm 638nm 180mW 185mW Red Laser Diode Orange Red Light Single Mode
Sale!

GH0631IA2GC 635nm 638nm 180mW 185mW Red Laser Diode Orange Red Light Single Mode

$29.00$39.00

Clear
SKU: 3256803036946632 Category:

Description



  • Brand Name: Jolooyo
  • Certification: NONE
  • Origin: CN(Origin)
  • Item Type: Stage Lighting Effect
  • Model Number: LD638-180- GH0631IA2GC-BL

Specifications:

Model: GH0631IA2GC
Wavelength: 638nm
Output power: 185mw

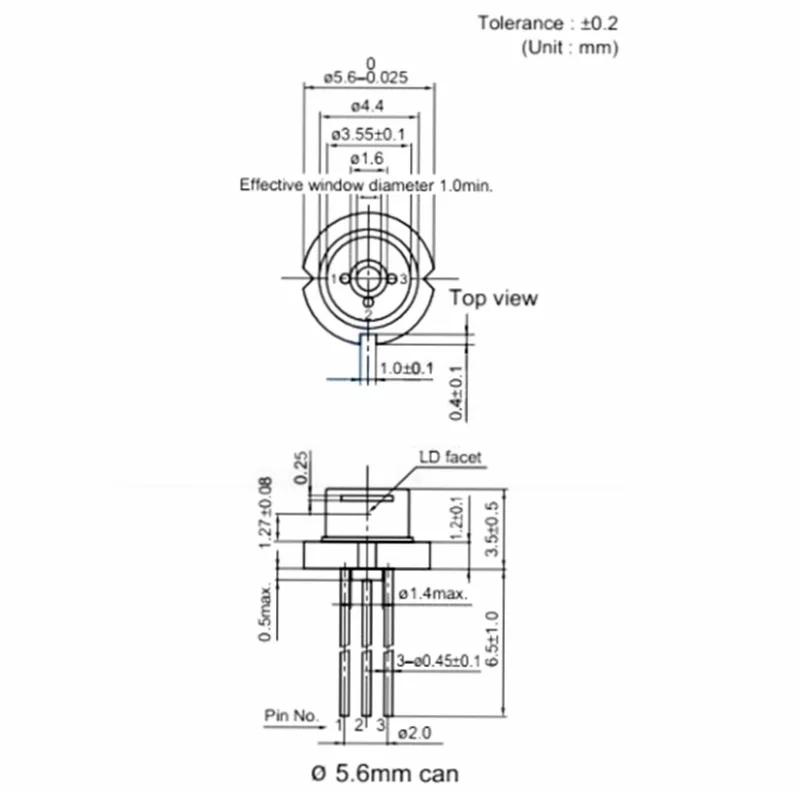

Package Type: TO-18/to56(Φ5.6mm) ,TO38(Φ3.8mm)
Operating current: 215mA
Operating voltage: Max 2.55V
Operating temperature: 0 ~ +65 ℃
Storage temperature: -40 ~ +85 ℃

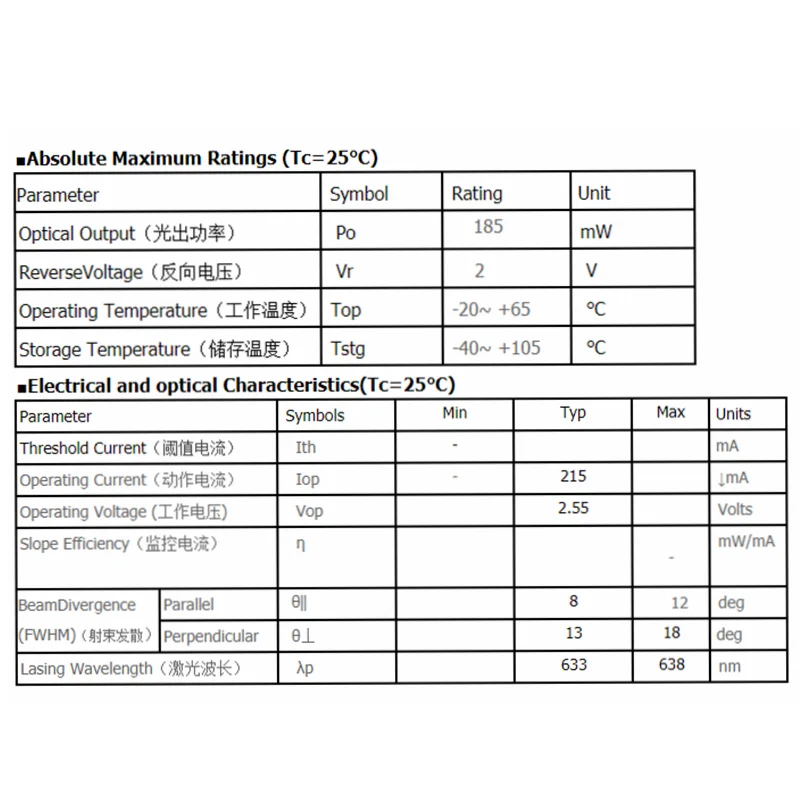

Absolute Maximum Ratings (Tc=25℃)

Parameter Symbol Rating Unit
Optical Output Po 185 mW
ReverseVoltage Vr 2 V
Operating Temperature Top -20~ +65 ℃
Storage Temperature Tstg -40~ +105 ℃

Application:

It can be used in equipment, medical care (beauty instrument), military, counterfeit security, stage lighting, tools, U disk, mobile phone, projection teaching flip pen, flashlight, temperature measurement (range finder), laser locator, swinger , Marking instruments, spirit levels, toys, indoor and outdoor decoration and other products.

Package:

1pc GH0631IA2GC 635nm 638nm 180mW 185mW Laser Diode
