- Origin: JP(Origin)
- Item Type: BALL
- Model Number: NVSU333A
- Wavelength: 365nm
- Voltage: 3.85V
- Intensity: 3640mW
- Current: 3500mA
Product Details for NVSU333A
NVSU333A 365nm ,”World Standard” High Power UV-LED,Long lifetime.
More details contact with service customer, thank you.
W : leduvcuring.com
P : +86-18924372460 Jennifer
Same as WhatsApp/Skype.
● Pb-free Reflow Soldering Application
● Built-in ESD Protection Device
● RoHS Compliant

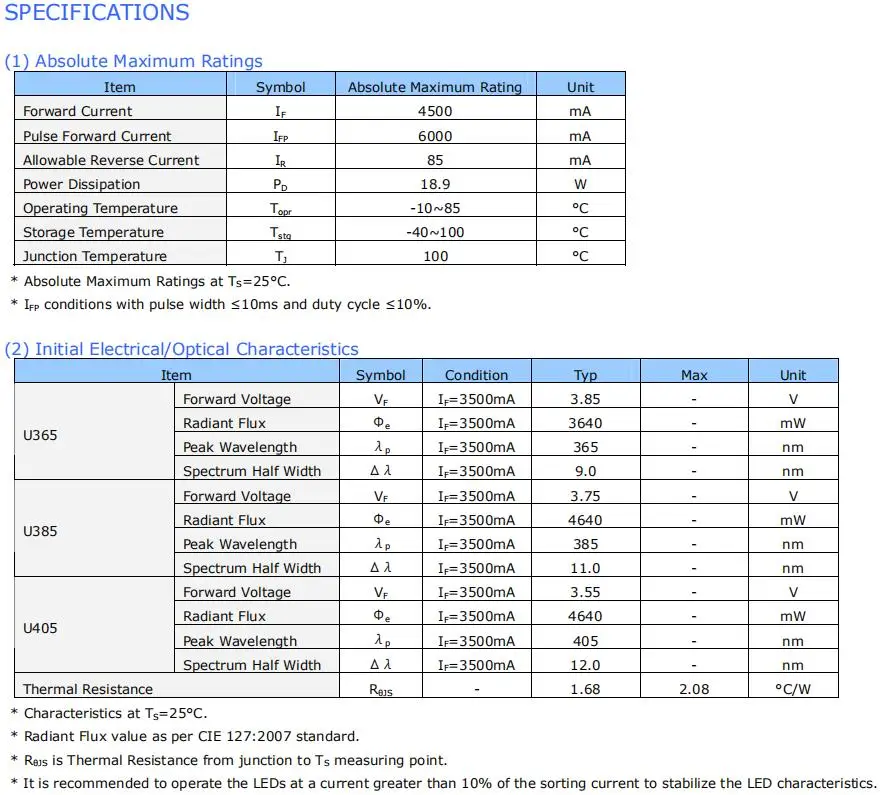

(1) Absolute Maximum Ratings
Forward Current I F 4500 mA
Pulse Forward Current I FP 6000 mA
Allowable Reverse Current I R 85 mA
Power Dissipation P D 18.9 W
Operating Temperature T opr -10~85 °C
Storage Temperature T stg -40~100 °C
Junction Temperature T J 100 °C
* Absolute Maximum Ratings at T S =25°C.
* I FP conditions with pulse width ≤10ms and duty cycle ≤10%.
(2) Initial Electrical/Optical Characteristics
Forward Voltage V F I F =3500mA 3.85V
Radiant Flux Φ e I F =3500mA 3640mW
Peak Wavelength λ p I F =3500mA 365nm
Spectrum Half Width Δλ I F =3500mA 9.0nm
* Characteristics at T S =25°C.
* Radiant Flux value as per CIE 127:2007 standard.
* R θJS is the thermal resistance from the junction to the T S measurement point.
* It is recommended to operate the LEDs at a current greater than 10% of the sorting current to stabilize the LED characteristics.

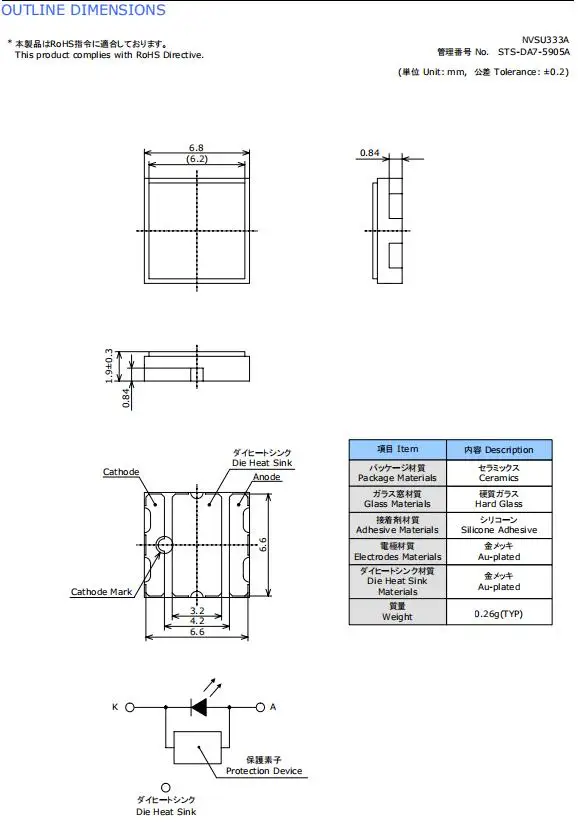

Outside Dimension :
Ink curing ,Lithography,Resin curing,Fluorescence Excitation,UV glue curing,Gap bonding,Magnetic-particle inspection etc.
