Laser Module 40W Fixed Focus Laser Head 450nm Blue Laser TTL Module Set For Laser Engraver Machine Wood Marking Cutting Tool

$199.00

Clear
SKU: 1005001972800135 Category:

Description



  • Brand Name: CRONOS
  • Certification: CE
  • Origin: CN(Origin)
  • Model Number: 40W

40W Laser Module Laser Head 450nm Blue Laser TTL Module Set for Laser Engraving Machine Wood Marking Cutting Tool

40W Laser Module Feature:

  • Designed for Laser Engraver, 3D printer, CNC mill, arduino project.

  • 15W Optical power output, 4mm plywood from 1 pass(speed 200), 3mm black acrylic board from 1 pass, Able to engrave stainless steel, needn’t focus adjustment.

  • More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.

  • More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.

  • Slidable mounting fixture is provided for easy adjustment of focus.



40W General Specification:



  • Heatsink Material:Aircraft Aluminum +Blue Shell

  • Luminous Color:Blue

  • Cooling Mode:Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

  • Can Engrave:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum/Stone/Ceramics/ Stainless Steel

  • Can Not Engrave:Metal/Glass/Stone/Ceramics/PCB/Reflective Material/ Transparent Material

Technical Parameters:

  • Module Input:40W

  • Optical power output:5.5W

  • Wavelength:450nm

  • Beam Shape:Dot(fixed focues)

  • Working Voltage:DC 12V

  • TTL&PWM Modulation:YES, Compatible with Both TTL & PWM Modulation

  • Input Voltage:DC12V 3-4A

  • PWM/TTL Input:DC 5V

  • Input Interface:3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

  • Safe temperature range:<60 ℃

  • Module weight:202g ( The lighter the weight, the smaller the move inertia, the better the performance )

  • Life Time:10000-20,000 hours

Magnetic protective case:

Packing List :40W laser module +Goggles+2pin-2pin cable +3pin cable+ Focusing column+Test Cable

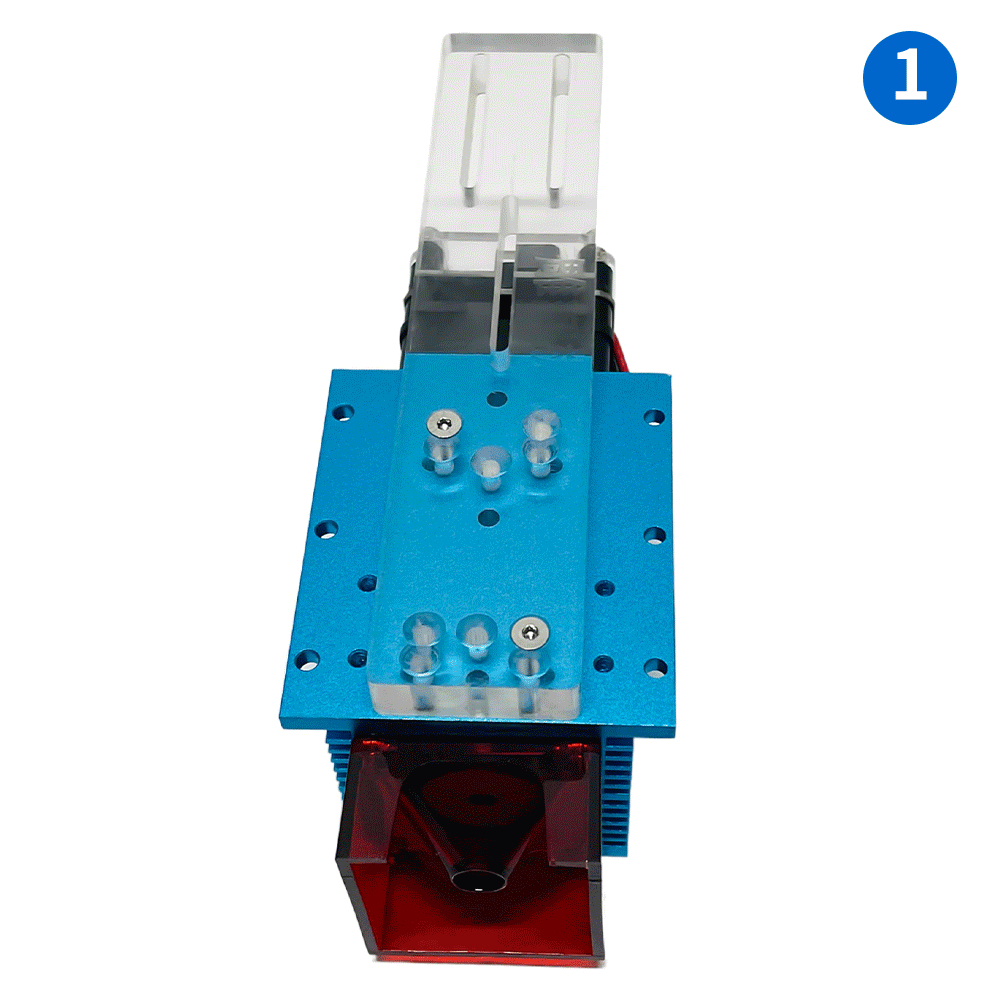

Large size laser installation method:

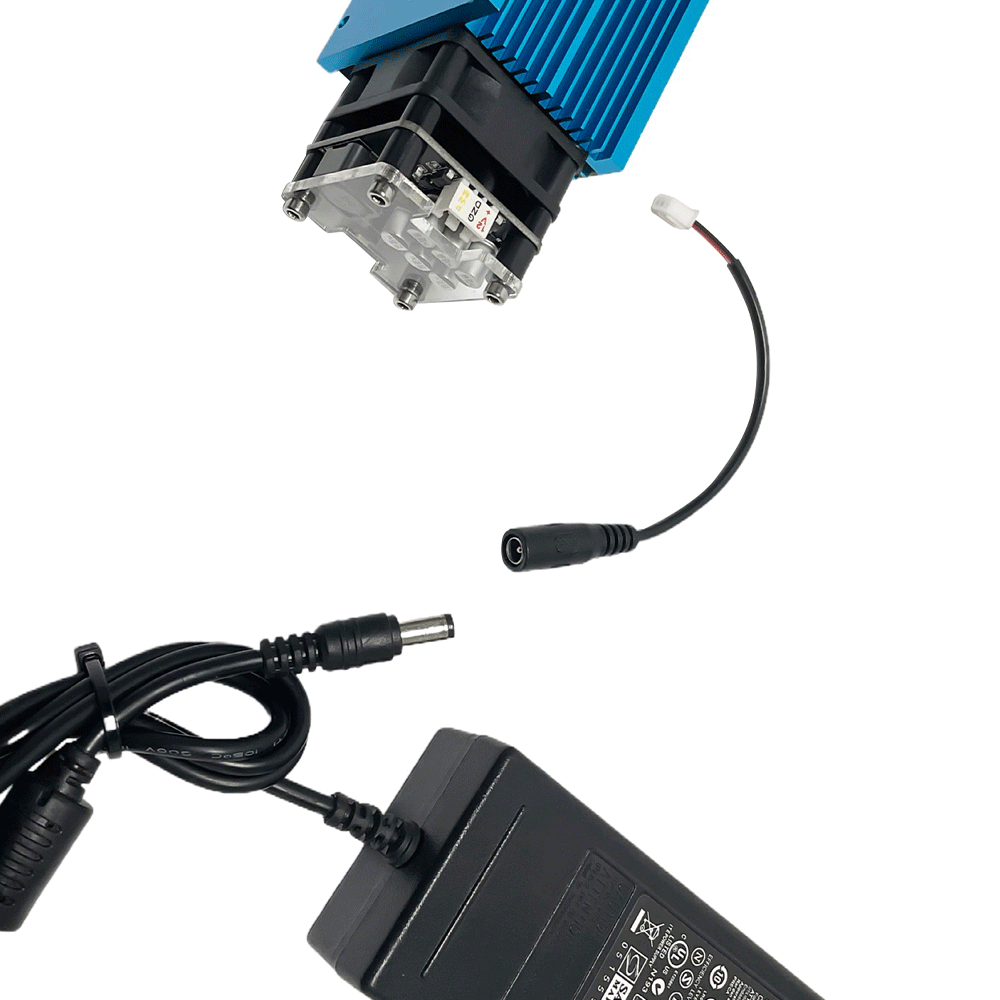

Laser test:
2pin-2pin connection diagram:

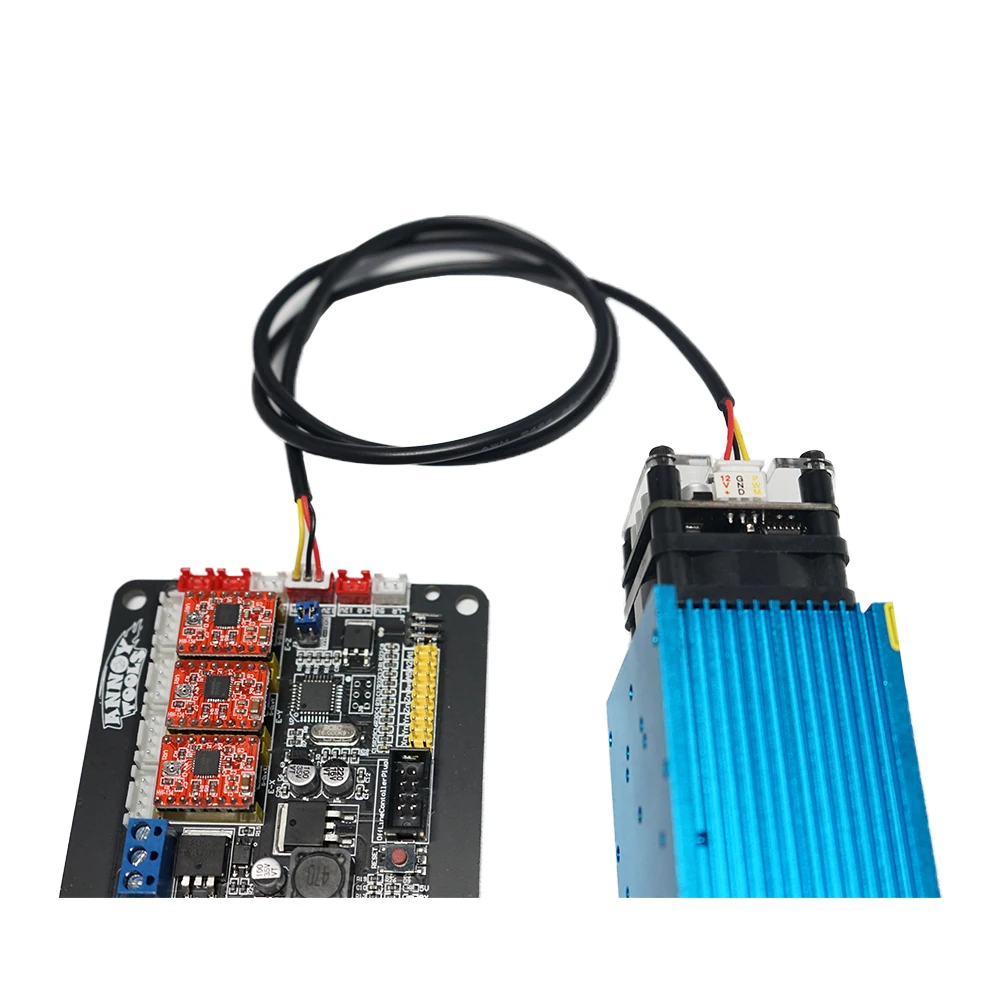

3Pin laser connection diagram:

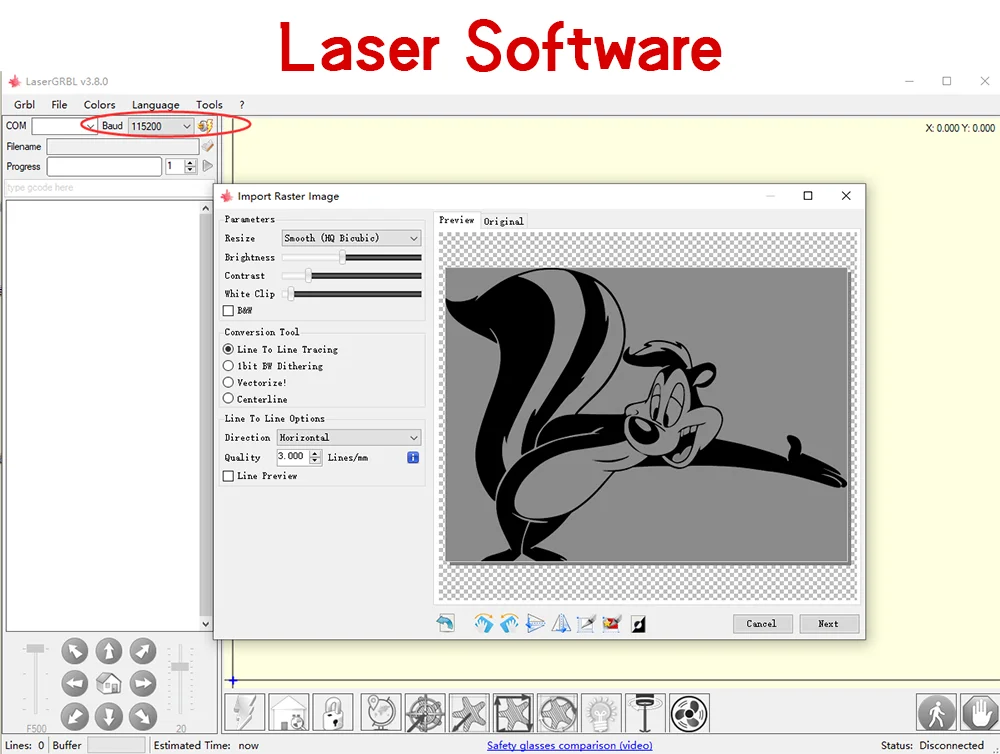

Free software:
