Description
- Brand Name: NoEnName_Null
- Certification: CE
- Origin: CN(Origin)
- Size: 138.5*81*23mm
- Model Number: OHSP-350C
- Focal Length: 2mm
- Weight: 450g
- Wavelength Range: 380nm ~780nm
- Type: Single Beam Spectrometers
- Measurement Range: 380nm ~780nm
- Name: Spectrometer
- Place of Origin: Zhejiang, China
- Brand Name: HOPOOCOLOR
- Power: Electronic
- Product name: OHSP-350C Spectral irradiance colorimeter
- Integrating Time: 50μs~10000ms
- Illuminance Range: 5lx~200klx
- CCT Range: 1,000K~ 100,000K
- Display: 5′ HD IPS LCD
- Material: Aluminum Alloy
- Warranty: 24 Months
- Color: Golden
Product Show

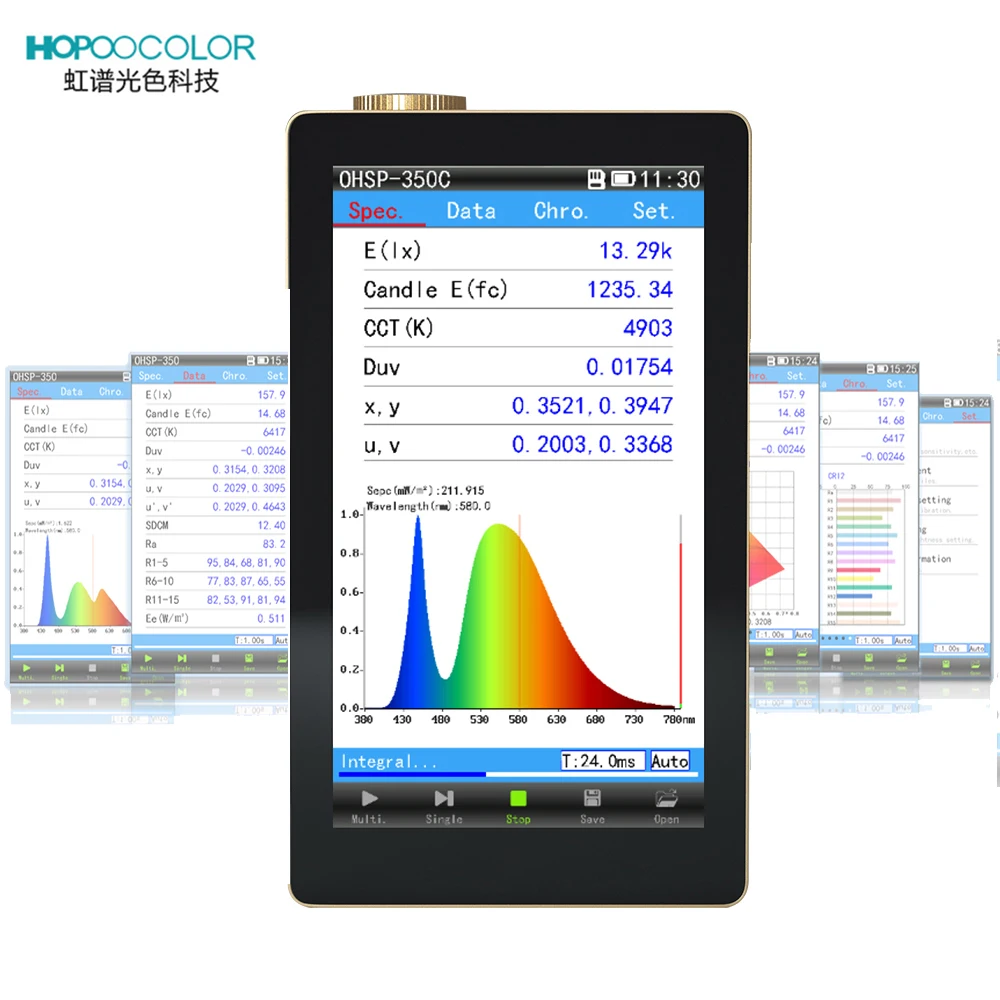

OHSP-350C Spectral irradiance colorimeter, integrated spectrum, CCT, CRI, Lux, irradiation .etc parameters in one. With 5 inch touch screen, Real-time display of measurement parameters and curves ,use convenient and fast.not only measure LED wide spectrum light source ,but also measure CFL、HID narrow spectrum light source.
![](https://ae01.alicdn.com/kf/H66914243ea5b442b95544f470152dcd8F.jpg)
![](https://ae01.alicdn.com/kf/H959e16fa2201480289ca53f8a9f1f3e8Z.jpg)
Measurement
1. CCT Tc (K) and Blackbody deviation Duv
2. light illumination E (LX), candlelight E (Fc) Spectral irradiance Ee (W/m2)
3. chromaticity coordinates (x, y), (U, V), (U ‘, V’)
4. relative spectral power distribution P (lambda)
5. color index Ra, Ri (i=1 ~ 15)
6. color tolerance SDCM
7. Dominant wavelengths, peak wavelengths
8. Visual ratio of light and shade S/P
9. color purity, red ratio, green ratio, blue ratio, CIE1931 three basic color stimulus value X, Y, Z
![](https://ae01.alicdn.com/kf/H63c744665fad4e2d922686024208ee78c.jpg)
![](https://ae01.alicdn.com/kf/H1b0c4c7ca2c042f88ab40586c4cd0b4d8.png)
