Standard quartz cell with lid and leve bottom(10mm)

  • Home
  • Standard quartz cell with lid and leve bottom(10mm)
Sale!

Standard quartz cell with lid and leve bottom(10mm)

$29.00

99972 in stock

SKU: 32599962090 Category:

Description



  • Brand Name: purshee
  • Origin: CN(Origin)
  • Model Number: 10mm
  • Classification: Test Tube

Brand:purshee

Name:Standard guartz cellwith lid and leve bottom

Volume:3.5ml

Path length:10mm

Technology:Solder frit bolding

Material:Japanese quartz glass

Transmittance:>80%(Paired testing)

Wavelength:200nm-2500nm

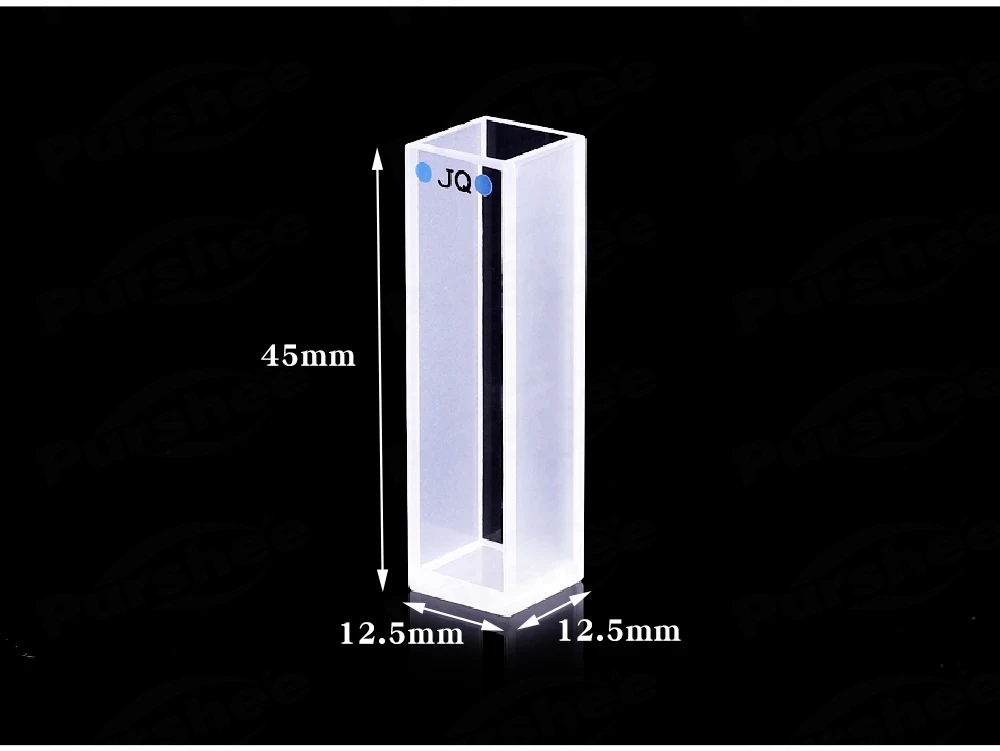

Outline dimension:12.5×12.5x45mm

TECHNOLOGY BRAND
▲First-class raw material–cuvettes are made of quartz with the best quality
▲Good surface accuracy–/4@632.8nm
▲High precision–±0.05mm shape tolerance,and less than 0.5% pairing error of light transmisssion

MATERIAL INTRODUCTION

Three types of quartz glass with different transmittance.

1、Ultraviolet quartz glass (JGS1), transmittance range 185nm-2500nm.

2、Visible light quartz glass (JGS2),transmittance range 300nm-800nm .

3、Infrared light quartz glass (JGS3),transmittance range 300nm-3500nm.

This product is made of(JGS1)with excellent UV and visible light transmittance,which can be used in various specs of UV visible spectrophotometer.



ATTENTION To The Use Of Cuvette

Cuvette, generally rectangular,

is made of frosted glass at the bottom and on two sides

(except fluorescence cuvette that light can penetrate four sides)

while the other two sides are light.

When taking cuvette, you can only use your fingers to contact both sides of the frosted glass or edge to avoid contact with the optical surface.

At the same time, be careful not to take too much power to prevent the breakage of cuvette.

Any solution containing corrosiveglass should not be placed in cuvette for a long time.

The light translucent surface of a cuvette shall not be contacted with the hard or the dirty. When the solution is filled, the height is at the 2/3 of the cuvette.

The optical surface, if there is a residual liquid, can be sored gently with a filter paper and then wiped with a lens paper or silk.
