Sub-Micro quartz cell with black walls and lid(50ul)

$49.00

99998 in stock

SKU: 32701458605 Category:

Description



  • Brand Name: purshee
  • Origin: CN(Origin)
  • Model Number: 50ul
  • Classification: Test Tube
Brand:purshee

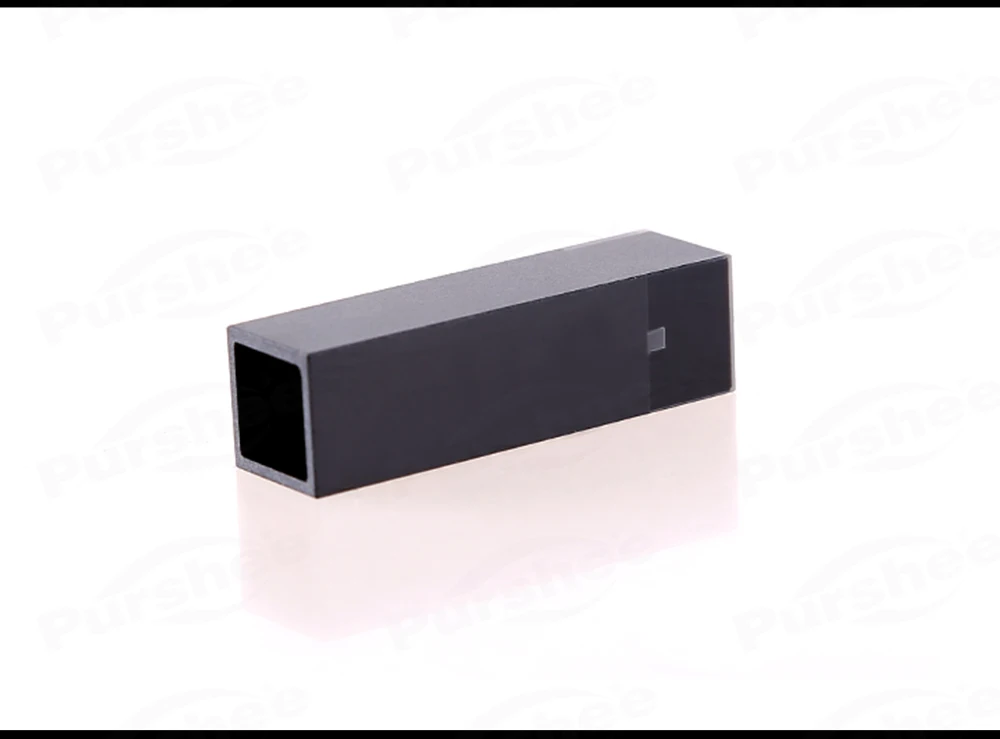

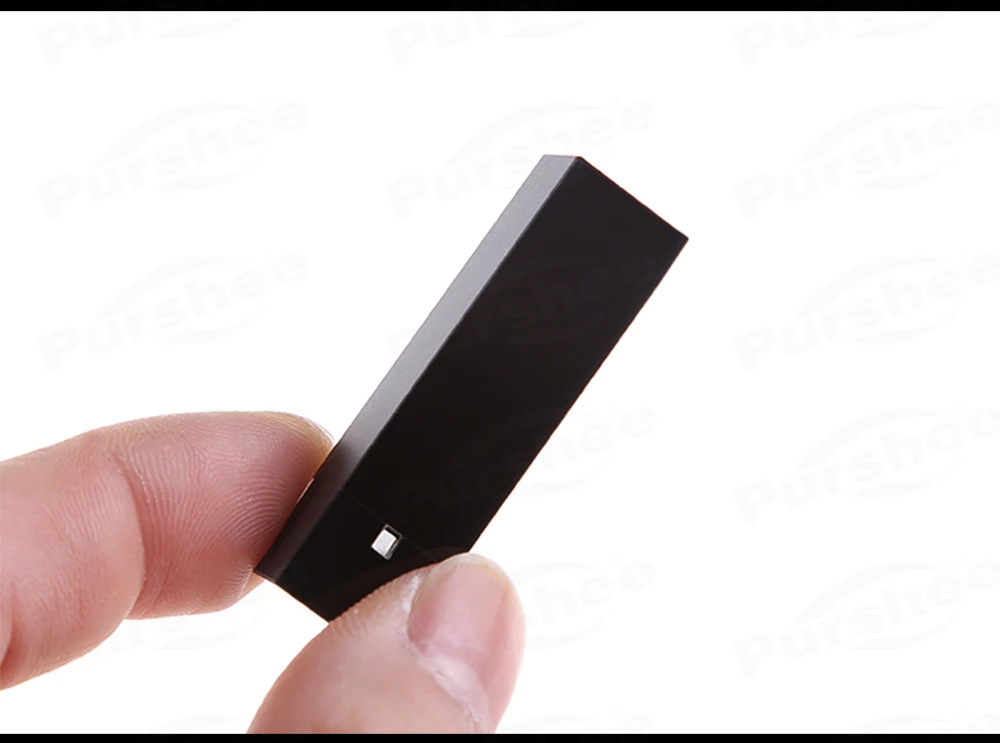

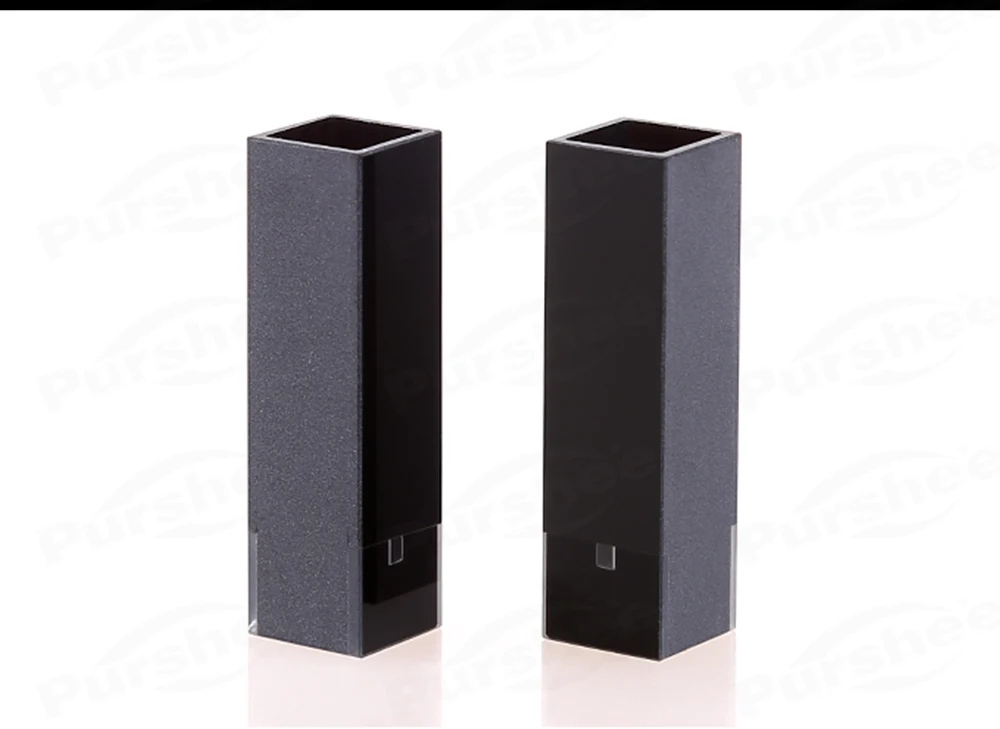

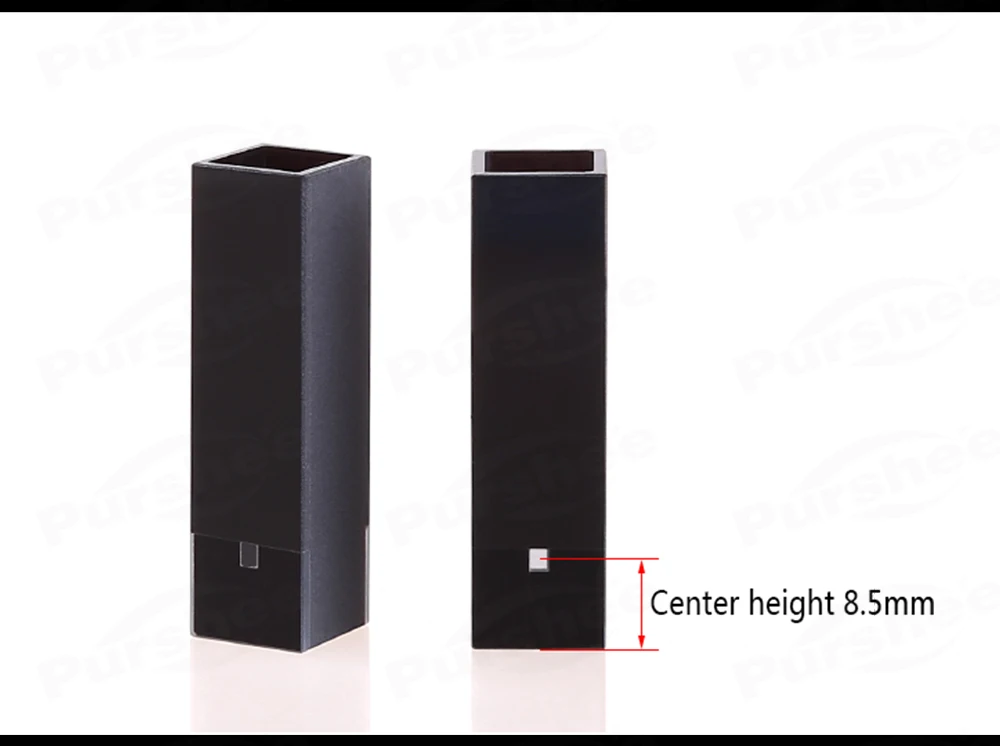

Name:Sub-Micro quartz cell with black walls and lid
Volume:50ul
Path length:10mm
Technology:Glue bonding process
Material:Japanese quartz glass
Thermostability:100℃
Wavelength:200nm-2500nm

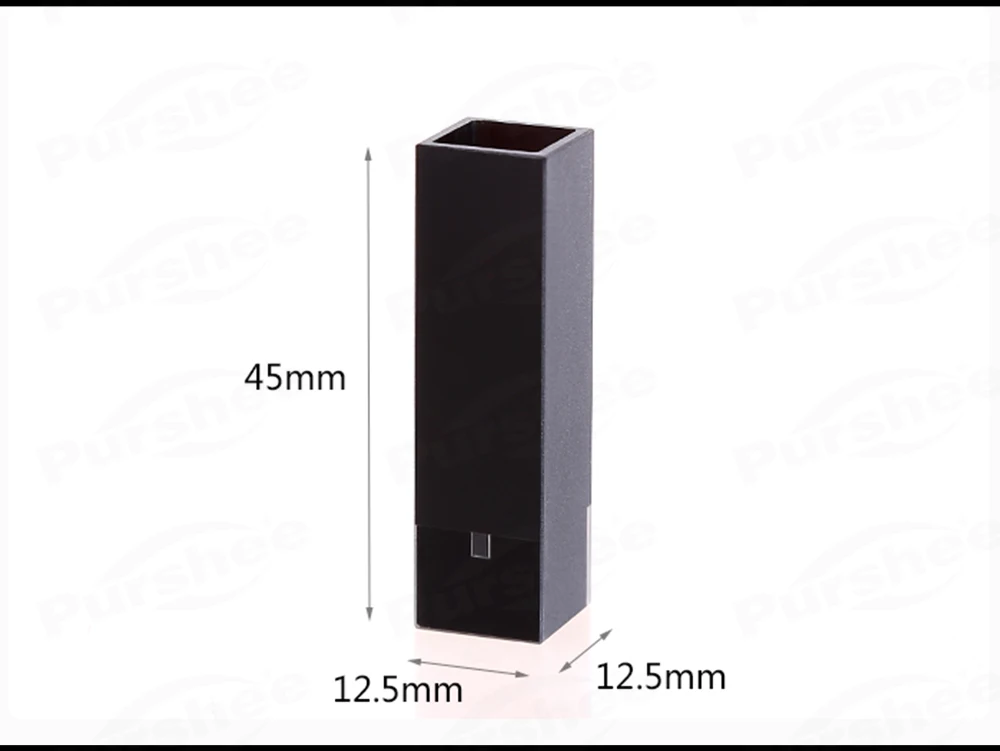

Outline dimension:12.5×12.5x45mm

TECHNOLOGY BRAND

▲First-class raw material–cuvettes are made of quartz with the best quality

▲Good surface accuracy–/4@632.8nm

▲High precision–±0.05mm shape tolerance,and less than 0.5% pairing error of light transmisssion

MATERIAL INTRODUCTION

Three types of quartz glass with different transmittance.

1、Ultraviolet quartz glass (JGS1), transmittance range 185nm-2500nm.

2、Visible light quartz glass (JGS2),transmittance range 300nm-800nm .

3、Infrared light quartz glass (JGS3),transmittance range 300nm-3500nm.

This product is made of(JGS1)with excellent UV and visible light transmittance,which can be used in various specs of UV visible spectrophotometer.

ATTENTION To The Use Of Cuvette

Cuvette, generally rectangular,

is made of frosted glass at the bottom and on two sides

(except fluorescence cuvette that light can penetrate four sides)

while the other two sides are light.

When taking cuvette, you can only use your fingers to contact both sides of the frosted glass or edge to avoid contact with the optical surface.

At the same time, be careful not to take too much power to prevent the breakage of cuvette.

Any solution containing corrosiveglass should not be placed in cuvette for a long time.

The light translucent surface of a cuvette shall not be contacted with the hard or the dirty. When the solution is filled, the height is at the 2/3 of the cuvette.

The optical surface, if there is a residual liquid, can be sored gently with a filter paper and then wiped with a lens paper or silk.
